Ultra Low Profile "Wireless" weigh pads
40,000 lb per pad / 80,000lb per axle (less than 3/4" high), wide
enough to accommodate double tires
(Perfect for Environmental & Demolition waste removal applications)
also often used by Fire Departments, EMS and
Vehicle Mfrs.
Price: from $3350 per pair
|
|
|
Ultra
low profile "Wireless" weigh pads
|
|
|
|
Each weigh pad has a built-in display
|
40,000 lb per pad / 80,000lb per axle (less than 3/4"
high), wide enough to accommodate double tires
(Perfect for Environmental & Demolition waste removal applications)
* Wireless, no cables to get in the
way
* Built-in display front panel keys: ON/OFF,
ZERO/TARE, LB/KG and Accumulate (to add weights)
* Built-in rechargeable battery
* Only 0.7" high, 28 3/4" wide (wide enough to accomodate dual tires)
* Removable ramps (standard)
Weighing Surface: 28 3/8" x 16 1/2" Platform
(wide enough to accommodate dual tires)
| Capacity |
| 20,000 lb or 40,000 lb per pad |
|
| Graduation value |
20 lb. (standard), other resolutions
possible (custom) |
| Overall dimensions |
See sketch |
| Active weighing surface |
28.4" width x 16.5" length
(in traffic direction) |
| Weight |
52 lb. (with ramps), 42 lb. (pad
only) |
| Temperature range |
-20°C to 60°C |
| Ground requirement |
Concrete or asphalt surface
preferred |
|
Model
|
Capacity
|
Price
|
|
Ultra
Low profile- 40K-20W
(Set
of 2 scales)
|
40,000
lb x 20 lb increments
(2) 20,000 lb capacity scales
One axle at a time
|
$3350
|
|
Ultra
Low profile-80K-20W
(Set of 4 scales)
|
80,000
lb x 20 lb increments
(4) 20,000 lb capacity scales
Two axles at a time
|
$5995
|
|
Ultra Low
profile-120K-20W
(Set of 6 scales)
|
120,000 lb x 20 lb
increments
(6) 20,000 lb capacity scales
Three axles at a time
|
$8995
|
| |
|
|
|
Ultra
Low profile- 80KW
(set
of 2 scales)
|
80,000
lb x 20 lb increments
(2) 40,000lb capacity scales
One axle at a time
|
$3350
|
|
Ultra
Low profile - 160KW
(set
of 4 scales)
|
160,000
lb x 20 lb increments
(4) 40,000lb capacity scales
Two axles at a time
|
$5995
|
Ultra
Low profile-240KW
(Set of 6 scales)
|
240,000
lb x 20 lb increments
(6) 40,000lb capacity scales
Three axles at a time |
$8995
|

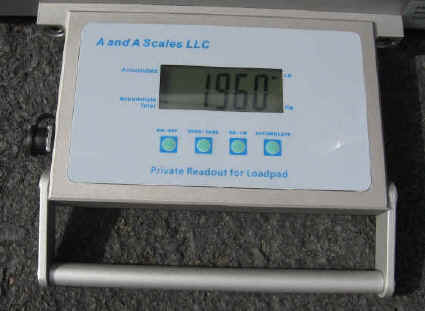

Close up of keypad on the weigh pad
Click
here for additional Photos
|
